H.264 Is Magic (2016)

cornstalks
26 replies
23h56m

I've always felt like H.264 hit a great sweet spot of complexity vs compression. Newer codecs compress better, but they're increasingly complex in a nonlinear way.

SirMaster
12 replies
23h6m

But with hardware acceleration for both encoding and decoding of HEVC it feels like less of a problem IMO.

ugjka
11 replies
22h38m

Video piracy is pretty much all in HEVC

JamesSwift
5 replies
20h21m

Uhh, not in my experience. Its extremely difficult to find h265 sources for a large majority of content. Its basically a meme where if you tell people you want to try and get h265 by default, they talk down to you like "why would you do that".

From https://trash-guides.info/Misc/x265-4k/

Something like 95% of video files are x264 and have much better direct play support.
babypuncher
3 replies
20h2m

That info seems a little out of date. The utility of h.265 at resolutions below 1080p can be questionable, but everything these days is 1080p or 4k.

Hardware support has also been ubiquitous for a while now. iPhones have had it since 2016. I usually "move on" to the next codec for my encodes once I run out of hardware that doesn't support it, and that happened for me with h.265 in 2019. My iPad, laptop, and Shield TV are still holding me back from bothering with AV1. Though with how slow it is, I might stick with h.265 anyways.

JamesSwift
1 replies
19h53m

The guide isnt saying 95% of source content is h264. Its saying 95% of files you would download when pirating are h264. The scene, by and large, is transcoding h265 4k to h264 720/1080. The 4k h265 is available but its considered the 'premium' option.

Izkata
0 replies
15h18m

The scene maybe, but outside of the scene and into general uploads I'd say it's more like 80% h265.

kuschku
0 replies
10h51m

Hardware support has also been ubiquitous for a while now.

With how limited browser support for h265 is, I always have to encode an h264 version anyway.

At that point I just encode a 720p h264, a 1080p h264, and a 4K HDR AV1 encode of all media I store.

dspillett
0 replies
10h2m

> Uhh, not in my experience. Its extremely difficult to find h265 sources for a large majority of content.

Sounds like you need some new sources. For now content I generally see x264 and x265 for just about everything. 264 isn't going anywhere because many older design set top boxes (including those still running Kodi on Pi3s) don't have hardware decode support, but 265 has become the default for 4K (which older kit doesn't support anyway) with 1080 & 720 being commonly available in both.

Admittedly some of the 265 encodes are recompressions of larger 264 sources and sometimes bad settings in either encode (including just choosing an already overly crunched source) show through, but that isn't common enough to be problematical (my usual complaint is that encodes like that strip subs, though that is useful: avoiding 265 encodes with no subs avoids the other issues mostly too).

Few are going back and making 265 encodes for older sources, so that may be an issue you've faced, but if that content has a new BR release or other re-release (like when B5 got a slightly remastered version on one of the streamers) then you'll get both formats in the common resolutions.

Kirby64
2 replies
20h51m

Not really. Only 4k content and anime seems to use HEVC/h265. Anything lower resolution has stuck to h264 for the time being.

contingencies
1 replies
20h12m

FWIW IIRC yts.mx began offering H.265 on standard resolution films about a year or two back.

Kirby64
0 replies
19h57m

Yeah, and most people consider stuff off yts to be of poor quality. Encodes are bad and do not meet standards.

Melatonic
1 replies
20h15m

I think the big switch will happen once most people have TV's that can do 10bit color and true HDR. H264 can definitely do 10 bit but I'm not sure how well it handles higher dynamic range content (or if it even can) but H265 definitely can.

babypuncher
0 replies
20h5m

I feel like the switch from AVC (h.264) to HEVC (h.265) has already happened. It's used in 4k blu rays, most premium streaming services, and hardware support has been ubiquitous for at least 6 years.

ronsor
6 replies
23h30m

H.264 will probably never die, especially once all the patents expire in a few years.

toast0
2 replies
22h28m

H.262 has a long future too. New DVDs and OTA broadcasts (at least for ATSC 1.0) will probably end at some point, but the discs won't go away for a long time, even if disc players are less and less popular.

ant6n
1 replies
7h41m

…you mean MPEG2?

cornstalks
0 replies
5h55m

H.262 == MPEG-2 Part 2 Video == ISO/IEC 13818-2. Video codecs are fun because multiple standards bodies publish their own version of the same codec. The ITU-T publishes the H.26x specs, and ISO/IEC publish the other xxxxx-x specs.

Pesonally I like the ITU-T because you can get the specs for free from them. ISO/IEC demand $242 for a copy of ISO/IEC 23008-2 (also known as MPEG-H Part 2 or HEVC). But ITU-T will give you H.265's spec (which is the same codec as ISO/IEC 23008-2) for free: https://www.itu.int/rec/T-REC-H.265

palata
1 replies
22h28m

When do they expire?

dehrmann
0 replies
16h45m

This is true, but I think I settled on either VP8 or VP9 because it's already widely supported, and it's part of webm, so people will maintain support just for backwards compatibility.

TimeBearingDown
1 replies
23h30m

It also benefits from the extremely optimized encoder x264, which has many easily approachable tunings and speed/compression presets.

I’m not sure I’d trust x265 to preserve film grain better than x264 —tune film unless I gave x265 much, much more time as well as pretty similar bitrate.

LeoPanthera
0 replies
22h23m

x265 has a specific "--tune grain" mode specifically for video with a lot of film grain.

Dylan16807
1 replies
20h57m

Doesn't every state of the art codec do that, including H.264 versus previous?

Also I haven't seen charts of decode difficulty, but as far as encoding goes, codecs a generation more advanced can crush H.264 at any particular level of effort. The even newer codecs can probably get there too with more encoder work. https://engineering.fb.com/wp-content/uploads/2023/02/AV1-Co...

cornstalks
0 replies
20h13m

Generally yes, but I wasn't only talking about compute costs. Mentally grokking H.264's features and inner workings is a lot easier than newer, better codecs.

ksec
0 replies
15h29m

MPEG 5 EVC Baseline, arguably the improved / refined version of H.264, actually compress better while having the same complexity, Both in terms of mental model and computational cost.

Somewhat unfortunate that never became anything.

fostware
0 replies
12h50m

Twitch... I just had DiVX vs Xvid flashbacks

adzm
21 replies
22h15m

I really like HEVC/h265. It's pretty much on par with VP9. but licensing trouble has made it difficult to get adopted everywhere even now. VVC/h266 seems to be having the same issues; AV1 is pretty much just as good and already seeing much more adoption.

radicality
16 replies
19h55m

What’s the tldr of the licensing problems?

I’ve started reading this article which list the various H.26x proposals - https://en.m.wikipedia.org/wiki/Video_Coding_Experts_Group

Seems like the group that comes with these is eventually part of the UN ? https://en.m.wikipedia.org/wiki/International_Telecommunicat...

Is it because they come with the codecs “jointly” with the MPEG organization, which is for profit? If the group is part of a standards organization that’s part of the UN, I feel like they should come up with non-patent-encumbered “recommendations”.

peutetre
15 replies
19h36m

What’s the tldr of the licensing problems?

There are multiple patent pools for H.265 wanting to be paid licensing fees (MPEG LA, HEVC Advance, Velos Media). HEVC Advance and Velos Media even want content distribution licensing fees.

And there are patent holders not in any pool who also want to be paid (Technicolor, Motorola, Nokia, etc.).

It's a mess.

ksec
14 replies
15h36m

HEVC Advance and Velos Media even want content distribution licensing fees.

That is not correct. Unless you meant they once "suggested" to ask for content distribution licensing.

ksec
12 replies
15h6m

Content distribution licensing fees implies and refers to streaming and broadcasting.

Physical Media has always been a seperate and its own category.

peutetre
11 replies
15h5m

No, it doesn't. You were wrong. Just accept that and be happy.

ksec
10 replies
15h2m

Ok, I will bite

>HEVC Advance and Velos Media even want content distribution licensing fees.

1. Are Broadcasting and Streaming "content distribution"?

2. Do HEVC Advance and Velos Media currently, or has ever charges for Broadcasting and Streaming?

And to quote: You were wrong. Just accept that and be happy.

peutetre
9 replies
15h1m

There's nothing to bite. You've been wrong before. You'll be wrong again.

ksec
8 replies
15h0m

LOL, You didn't even bother answering the question. I will let others be the judge. But it is rather obvious from your other reply about your knowledge on video codec.

Have a nice day.

peutetre
7 replies
14h58m

Look, your claim is that selling movies on discs is not content distribution. But it clearly is.

You're just wrong. Don't worry about it.

ksec
6 replies
14h46m

Look, your claim is that selling movies on discs is not content distribution. But it clearly is.

1. No where did I make the claim selling movies on discs is not content distribution. It is however NOT ALL content distribution, which is what you implied. And Physical Media licensing has been is own category since MPEG2 as used in DVD.

2. You claim of content distribution does not include Streaming and Broadcasting. Which has been the debate of the HEVC / H,266 licensing programme during its early stage of IP Negotiation terms. If you dont know H.265's history on patent terms then my suggestion is that you read up on it. As it is often the FUD pointed towards H.265. And you are, knowing or not, repeating it.

3. >You're just wrong. Don't worry about it.

This is HN. Not Reddit. If you dont know something, ask. Stop pretending you know something that you dont.

peutetre
5 replies
12h26m

As it is often the FUD pointed towards H.265

There is no uncertainty or doubt. The licensing of H.265 is well understood to be terrible.

You yourself are the perfect demonstration of this. You plainly don't know the terms of the licensing for all the different patent pools and individual licensors, and you've contradicted yourself multiple times in this thread. Let's review:

1. First you claimed there were no content distribution fees. That's false.

2. Next you claimed that "content distribution" only refers to streaming and broadcasting. That's false.

3. Then you claimed that "content distribution" does indeed include selling movies on discs. That's true and it means we're back at Claim 1.

Watching you flail about trying to save face is pretty funny, but more importantly it is the clear demonstration that you don't understand the terms of H.265 licensing which is, of course, why the licensing is so terrible.

One of the reasons AV1 is more usable is because its licensing is simpler, clearer, and more straightforward. You've proven that.

ksec
4 replies
11h39m

Thank You for explaining it. I will let HN be the judge.

Have a nice day.

saagarjha
3 replies
11h13m

Both of you come out looking pretty insufferable tbh

seethedeaduu
1 replies
10h6m

peutetre was clear from the start, ksec claimed that content distribution fees are not for physical media and to defend his position he asked "Do HEVC Advance and Velos Media currently, or has ever charges for Broadcasting and Streaming?" which makes no sense, since the specific topic was about physical media.

ksec
0 replies
8h30m

Please read form the start.

The specific was not about Physical media. The specific was that All content distribution requires fees. Physical media was not even specified in the original context.

ksec
0 replies
8h13m

TBH I had to suffer years of AOM and their supporter claiming themselves as Patent free. So I do get a easily annoyed by it.

threeseed
3 replies
19h8m

iPhone, DJI, Cameras etc all use H.265 or RAW.

It's really like H.264 all over again where everyone claims the patent pools make a big difference but only on the periphery.

cqqxo4zV46cp
1 replies
18h37m

“Everyone” meaning the vocal minority of HN users trying to maintain the purity of their Gentoo installs.

labster
0 replies
18h11m

Hey, someone needs to protect our precious binary fluids.

kuschku
0 replies
10h57m

"Cameras all use H.265", curious , what cameras are you referring to?

While some cameras do support it, it's much more common to use ProRes, DNxHD/DNxHR or h264 in all-intra mode (as e.g. in XAVC-I and XAVC-S-I).

h265, or long-GOP codecs in general, are only really used for long talking head shots or lectures.

rebeccaskinner
12 replies
20h27m

I do a lot of video compression for hobby projects, and I stick with h264 for the most part because h265 encoding requires far too much extra compute relative to the space savings. I can spend an hour compressing a file down to 1gb with h264, or I can spend 12 hours compressing the same file to 850mb with h265. Depending on the use-case, I might still need the h264 version anyway since it's far more widely supported by clients. If I had a data center worth of compute to throw at encoding, or I were running a streaming service where the extra 150mb per video started to add up, then I'd definitely on-board with h265 but it's really hard to justify for a lot of practical use-cases.

Osiris
7 replies
17h26m

Is GPU accelerated encoding not an option?

rebeccaskinner
5 replies
17h15m

I haven't actually done the comparison myself, but the common refrain is that the quality of the video suffers when you use GPU accelerated encoding. That's not a tradeoff I want to make, so I've just stuck with CPU encoding.

a_wild_dandan
4 replies
16h4m

Wait, why does GPU encoding affect the output quality? Is that common in transcoding stuff?

ksec
2 replies
15h41m

why does GPU encoding affect the output quality

Every single encoder, regardless or hardware or software will output different output quality. Video Encoding is a lossy encoding, not lossless like ZIP or RAR. That is the same with Audio that is why people test different audio encoder. It seems more people knows this about Audio than Video. At least on HN.

GPU encoding quality has always been lower quality than Software. Primary because they trade off quality for speed. It is good enough once you hit certain bitrate, but at low bitrate where absolutely encoding efficiency is required Hardware Encoding just dont compare to software. Even with Software you could have multiple encoder with different results. It is not like H.266 / HEVC only has x266 as encoder, example Netflix uses BEAMR. And Broadcasting TV station uses other encoder that better suits their needs.

And it is one reason why I dislike all these AV1 discussion, whenever people said it is slow they said use SVT-AV1, well yes SVT-AV1 is faster but dont produce the best AV1 quality encode. So what is the point. It is like every time these discussions about AV1 AOM supporters will just move the goal post.

ezoe
0 replies
6h56m

You don't need to find the best possible encoding. SVT-AV1 can encode as fast as x264, keeping the same visual quality to human eyes while reducing bit rate by 50%.

If you want to retain visual quality, you always have an option to use higher bit rate.

charrondev
0 replies
14h51m

I mean the thing with something like SVT-AV1 is, even if it doesn’t give you the best efficiency encode, does it do a more efficient encode than your alternatives in a reasonable timeframe.

dawidpotocki
0 replies
15h45m

GPU video encoding is pretty much always optimised for real-time encoding, meaning that it can't run certain optimisations as it would increase the time to encode.

Compare x264 veryfast and veryslow presets. There is a quality difference at the same bitrate.

Additionally, GPU encoders don't have as many psychovisual options as CPU encoders as they would need to be included in the hardware and adding extra options to CPU encoders is much faster, easier and cheaper.

You could build a non-realtime GPU encoder, but there is not much point.

SomeoneFromCA
0 replies
9h58m

There two types of GPU acceleration: acceleration by a hardware codec bolted on a GPU, and actual GPU computational acceleration. the latter is not widely used but probably is not n gonna have any difference in terms of quality, and provides only modest acceleration.

sgbeal
1 replies
6h56m

I stick with h264 for the most part because h265 encoding requires far too much extra compute relative to the space savings. I can spend an hour compressing a file down to 1gb with h264, or I can spend 12 hours compressing the same file to 850mb with h265.

FWIW, as someone who is a complete layman on this topic but has spent much of the past 6 months converting age-old videos to h265...

i have a pi5 where i queue up old videos into a RAM disk, it converts them to h265, and moves them back to the machine which uploaded them. It can take up to 2 days to compress any given video (depending mostly on the input format - old AVIs tend to compress in a few hours), but the space savings is _much_ higher than what you're reporting. The average size of my h265-encodes is anywhere from 1/3rd to 1/2 of the original, and 1/4th of the original is not terribly uncommon. That said: the input formats vary wildly, with possibly only a minority fraction being h264.

i've tried the same thing using a pi4 but it needs roughly 4-5x as long as the pi5. An 8-core intel-based laptop can do it in some 25% of the time of the pi5 but pulls a lot more electricity while doing so. So my otherwise idle pi5 gets the assignment.

My Firefly collection (14 tv episodes plus the movie) dropped from 8gb to 2.1gb. My Bob Ross collection (141 videos) went from 38gb to 7.4gb. 128 Futurama episodes/movies was cut from roughly 50gb to 21gb.

i was once asked why i didn't choose AV1 and the answer is simple: when i googled along the lines of "how to get the best video compression with ffmpeg" the most common answer was h265. Whether that's correct or not, i can't say, but it works for me and i've freed up the better part of a terabyte of space with it.

rebeccaskinner
0 replies
1h6m

Interesting, your numbers look to be quite a bit better than the 30% improvement I've heard is the standard rule of thumb for how much improvement to expect with h.265, and on average for me it's been closer to 20%. I think h.265 starts to show much more meaningful improvements as you start using lower bitrates, and the specific type of media probably matters a bit as well.

I do most of my encoding on an i9-13900k. I've also noticed that h.265 seems to be quite a bit more likely to trigger the smt related crashes in ffmpeg, which makes it a pain when I've queued up a lot of things to encode over night.

radicality
1 replies
20h13m

What about when you’re recording (say your iPhone / android / standalone camera) - are you choosing h264 or h265 (or something else like an intra-frame only codec for easier editing).

rebeccaskinner
0 replies
19h31m

Most of what I do is working with pre-recorded video, but for projects where I'm doing recording I tend to use h.264 since I don't have a lot of devices that support h.265 anyway, and picking one format with broad compatibility is generally more important to me than the efficiency gains I'd get using h.265 when I could.

adzm
2 replies
22h17m

VVC has a lot of the same issues that plagued HEVC adoption. There really isn't much reason to not use AV1 if you want the best codec currently.

jl6
1 replies
21h54m

VVC is a generational improvement in compression ratio over AV1, which might make it the best for a lot of applications. Too bad it will probably languish in patent licensing hell.

Dylan16807
0 replies
8h28m

VVC is a generational improvement in compression ratio over AV1

That's probably true, but do you know where I could find a comparison that shows a variety of speed settings for both codecs? And ideally discusses how fast VVC is expected to encode once everything is more finalized.

It's easy enough to run everything at default speed but then the results are almost meaningless.

lokidokiiki
0 replies
22h1m

Well, it’s two louder, obviously.

ksec
0 replies
15h24m

Best in terms of compression efficiency. Although x266 has been delayed by 6 months and counting.

But it is currently being used in India and China already. So its usage is much bigger than a lot of people would imagine.

Melatonic
0 replies
20h2m

Have you experimented with it much? First I am hearing of it

TacticalCoder
5 replies
21h8m

Well OK, but what about H.265? It's one louder, isn't it?

I had some old, gigantic, video footage (in a variety of old, inefficient, formats at a super high quality).

So I did some testing and, well, ended up re-encoding/transcoding everything to H.265. It makes for much smaller files than H.264. The standard is also ten years younger than H.264 (2013 for H.265 vs 2003 for H.264).

Melatonic
4 replies
20h23m

Years ago I was photographing a party in silicon valley (had just graduated college and was taking any job I could get). I take a nice photo of a couple and the wife looks at me and says " You know my husband invented H264? Do you know what that is?".

Ended up having a long conversation with the husband (the engineer) and he hinted many times that they were working currently on something even better. Years later now of course we have H265. Everytime I play something in H264 or H265 I think of that moment and how much work that guy and his colleagues must have put into coding such a widely used codec (and how proud his wife was!)

drmpeg
3 replies
19h41m

She should say "helped to invent". Video codec standard development is most definitely a group effort.

illusive4080
2 replies
18h29m

You worked on MPEG?

drmpeg
1 replies
18h9m

Yes, from 1993 until I retired in 2011. I worked at C-Cube Microsystems and LSI Logic.

In 1993-1994 at C-Cube, I helped develop the first real-time MPEG-1 encoder. The rest of the team was busy developing the 704x480 resolution encoder for the roll-out of DirecTV, so I ended up taking sole responsibility for the MPEG-1 product and brought it to market. It's thought that this encoder authored much of the content for China VCD.

One notable thing I remember was watching the OJ Simpson chase on a test DirecTV receiver in the C-Cube lab (the same day that DirecTV went live).

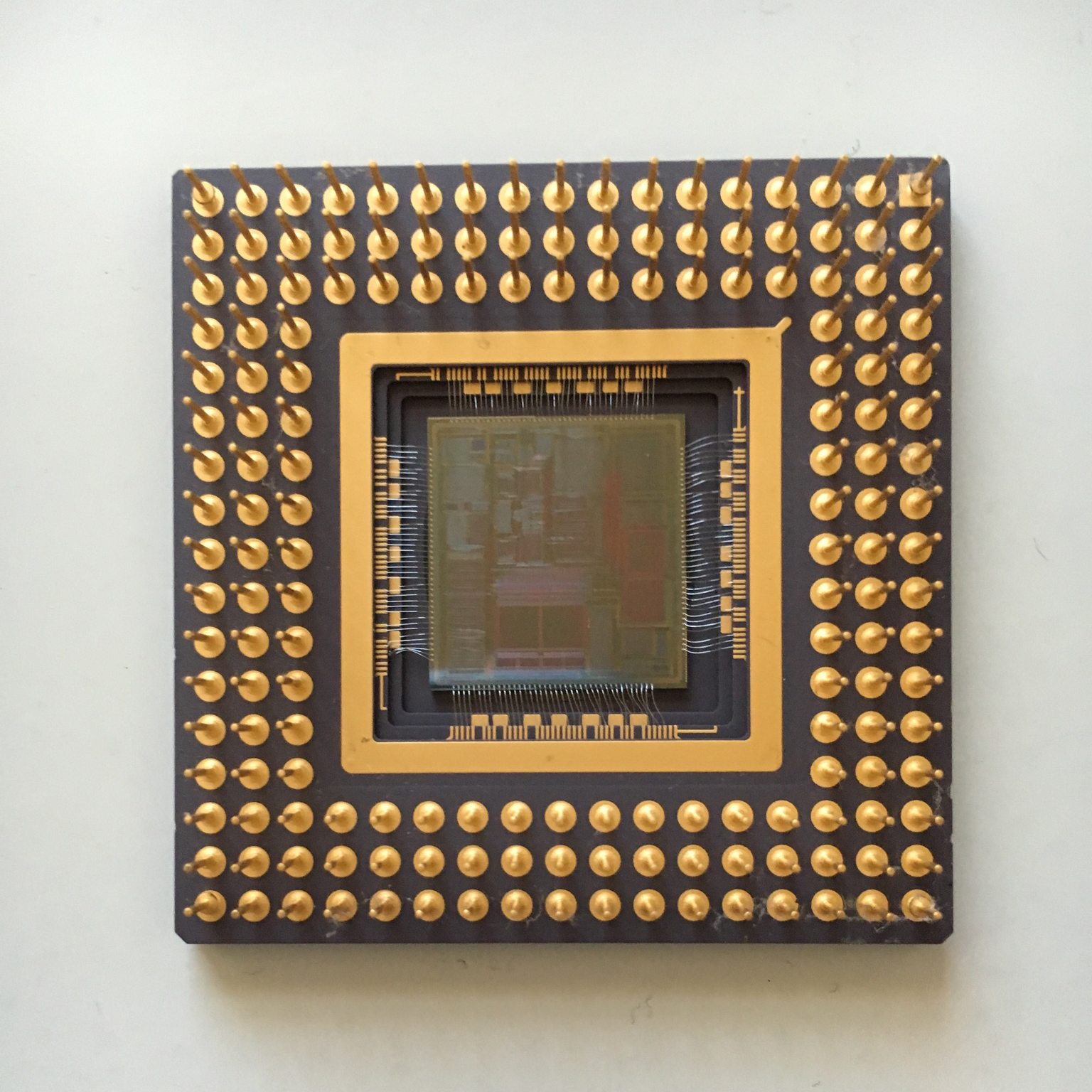

Here's a picture of the C-Cube chip. It took 12 of these running in parallel to encode 704x480 MPEG-2.

https://www.w6rz.net/cl4010.png

KronisLV
0 replies
14h7m

That’s really cool, thanks for sharing!

ezoe
0 replies
7h54m

HEVC and AV1 is twice more magic. It keep the same quality to human eyes while reducing the bitrate by 50%.

HEVC is patent encumbered. Users who use old hardware don't have hardware decoder. So both requires more time to be adopted.

asveikau
0 replies
22h30m

Maybe I need to change some options, but I find whatever encoder I get when I ask ffmpeg to encode h265 takes a very long time. Then decoding 4k h265 is very slow on most of my PCs.

It sure gets the file size down though.

peutetre
32 replies
19h48m

AV1 is more magic with better licensing.

For their use case Meta is gradually getting to a baseline of VP9 and AV1 streams for their video streaming: https://www.streamingmedia.com/Producer/Articles/Editorial/F...

And AV1 for video calls: https://engineering.fb.com/2024/03/20/video-engineering/mobi...

Microsoft is starting to use AV1 in Teams. AV1 has video coding tools that are particularly useful for screen sharing: https://techcommunity.microsoft.com/t5/microsoft-teams-blog/...

Most of the video I see on YouTube these days is in VP9 or AV1. Occasionally some video is still H.264.

H.264 will still be around for quite some time, but AV1 looks set to become the new baseline for internet video.

sambazi
10 replies
11h3m

Most of the video I see on YouTube these days is in VP9 or AV1. Occasionally some video is still H.264.

can't shake the feeling that most videos at 720p took a hard hit to quality within the last years (or my eyes are getting better)

any deep dives on the topic appreciated

defrost
3 replies
10h45m

I've compressed tens of thousands of videos in recent years and critically looked at the results.

My gut feeling is that implementations of hardware acceleration are just simply not as good as software implementations, the cause perhaps relating to localised resource constraints in hardware when recursing deeper or somesuch.

The algorithms are the same, the chip versions are more resource constrained as the stack goes deeper if you will.

Hardware compressors are much much faster, no doubt, by an order of magnitude and more .. but software compressors left to run slow, with two passes, just produce a much better result.

Standard hardware compressor settings tend to leave moire patterns when the camera pans outside a chain link fence onto a player inside a court (for example), or leaves a blocky halo around the significant figure point of interest moving in an otherwise stillish scene - it's subltle small things that grate when you see them.

The root cause of perceived downgrade in quality is bulk pushing of high quality originals through hardware accelerated compression in order to save time and reduce cost when generating lower bitrate versions to stream.

The_Colonel
1 replies
9h27m

There are tradeoffs. IIRC Netflix uses software encoders and they work pretty hard to squeeze the maximum quality for a given bitrate. Makes sense for their use case. OTOH, for like video calls, certain kinds of archiving, in general cases with few or no views, it makes sense to use hardware encoding even if it means compromised image quality.

defrost
0 replies
9h17m

Sure, there are many use cases and Netflix generally has streams with high quality and few artifacts.

Real time video communications are going to go for fast low bitrates and that's more or less expected.

In other cases where encoders have no real time constraint, eg pirate torrents and youtube alternate versions, there are multiple tiers of quality - for a given resolution (say 720p) and bit rate rate | file size the offerings can be split by time spent encoding, quick and shitty to slow and few visible quirks.

fps-hero
0 replies
8h54m

Absolutely. Software encoders are constantly pushing the envelope in terms of quality, and they have tuneable knobs to allow you to pick the speed vs quality trade off.

Hardware encoders are much more restrictive. They will target a maximum resolution and frame rate, realtime encoding a possibly low latency as requirement.

The standards define the bitstream, but is lots of scope for cheating to allow for simpler hardware implementation. You could skip motion prediction and use simple quantisation, it would just contribute to the residual entropy that needs to be encoded. Then, you can use inefficient implementations of the entropy encoders. The end result is something that can be interpreted as a valid bitstream but threw out all the algorithmic tricks to give you high quality compressed video.

I think specifically in terms of YouTube, it’s not a hardware encoding issue but it’s a purposeful optimisation for storage and bandwidth.

Dylan16807
3 replies
10h1m

I don't have a deep dive, but I can confirm youtube has made things worse. I came across a copy of 『the TV show』 that I downloaded in 2009. 720p, H.264, 2460kbps. Looking again a couple weeks ago, it was 720p, VP9, 1300kbps. VP9 is more efficient but at half the bitrate it looks much worse.

Poking more, there's an AV1 version that's a little less bad at about the same bitrate, but it's still significantly worse than the old encode. There's also a new version of H.264 that's 2/3 the size of the old one. It's about as bad as the VP9 version but the artifacts focus on different parts of the image.

You'd think after 15 years of storage prices dropping, bandwidth prices cratering, and screens getting bigger, youtube might decide to maintain bitrates and let new codecs increase the quality of videos. Or split the difference between quality and savings. But nah, worse.

The_Colonel
1 replies
9h32m

It doesn't make much sense to compare 720p to 720p like that. What matters is the bitrate. So the better question is - does youtube offer better quality video at a given bitrate constraint now in comparison to the past?

Dylan16807
0 replies
9h14m

I am comparing the maximum quality available. I don't much care that today's 1300kbps video looks better than 2009's 1300kbps video. I care that they used to offer higher quality, and now they don't. I am not bitrate-limited, or at least my bitrate limit is higher than youtube would ever consider going.

What matters is the bitrate, and they're being overly stingy on bitrate.

dannyw
0 replies
7h34m

Most people watch videos on phones now, the small screen means users will tolerate worse quality video.

globular-toast
0 replies
9h49m

I thought it was well known that YouTube cut bitrates during the pandemic? In any case, I think you're quite right, I only watch YouTube in 720p and some videos seem comparable to stuff I downloaded from Kazaa back in the day. It's ok, though. I don't pay for YouTube and I think it's good for them to offer higher quality options for a charge rather than hound every single viewer for payment.

dannyw
0 replies
7h31m

During the pandemic everyone was online. There wasn’t enough bandwidth. So all major platforms slashed bitrates. YouTube, Netflix, Zoom.

mananaysiempre
6 replies
17h22m

AV1 is more magic with better licensing.

AV1 is bloody awful to encode in software.

I was recording videos of lectures (a slowly moving person against a whiteboard with thin sharp lines on it, in a questionably well-lit room) and needed to encode them to smallish 720p files to be posted somewhere (ended up uploading them to the Internet Archive). This is not something that x264’s default encoding profiles do well on, but with a day or two of fiddling with the settings I had something I could run on my 2014-era iGPU-only laptop the night after the lecture and have the result up the next day.

By contrast, libaom promised me something like a week of rendering time for the three hours of video. Perhaps this could be brought down (my x264 fiddling got me veryslow-comparable results several times faster), but the defaults were so bad I couldn’t afford to experiment. (This was some four years ago. Things have probably gotten better since then, but I don’t expect miracles.)

sergiotapia
3 replies
17h0m

Not at all my experience, 673 movies and counting. I encode at around 10 to 13x with my 12900K using svt-av1.

My command:

ffmpeg.exe -i file.mp4 -r 23.976 -vf scale=1280:720 -c:v libsvtav1 -pix_fmt yuv420p10le -crf 30 -preset 10 -g 600 -c:a libopus -b:a 96k -ac 2 -c:s copy -map 0 out.mp4

Try it.

runsfromfire
1 replies
11h6m

while the lectures in they were encoding would definitely look fine with these settings, I have to question your baseline for quality if you’re watching full Hollywood movies encoded at CRF 30.

sergiotapia
0 replies
5h7m

I'm watching these on my second monitor when I play guitar.

Starlevel004
0 replies
9h14m

-crf 30

That would do it.

eviks
0 replies
14h58m

libaom promised me

The reference AOM was never a practically useful encoder even 4 years ago.

I couldn’t afford to experiment

Pity as you'd discover a better encoder...

wolfspider
5 replies
18h41m

Well sure, but the hardware encode and decode isn’t completely widespread yet. I’ve been patiently waiting for what has felt like an eternity. From the developer perspective everyone needs to have access to it or I’m just sitting on my hands waiting for the capabilities to trickle down to the majority of users. Hopefully more users will purchase hardware if it features AV1 encode/decode. They need a logo that says “AV1 inside” or something. So, for example only the iPhone 15 pro offers hardware decode so far in the iPhone lineup.

peutetre
2 replies
18h0m

You inevitably have to do multiple encodes. An H.264 encode as the "plays anywhere" option and an AV1 encode as the "less bandwidth or better image quality at the same bandwidth" option.

YouTube does H.264, VP9, and AV1 video encodes with AAC and Opus audio encodes.

This video for example has encodes of all those options: https://www.youtube.com/watch?v=ArmDp-zijuc

You can watch it in multiple resolutions and formats from 4K in AV1 down to 144p in H.264.

KyleSanderson
1 replies
16h40m

This only happens because they're using Cisco's license. H.264 is not "plays anywhere".

ksec
0 replies
15h49m

By your definition then nothing would be "plays anywhere". H.264 is about the closest you can get. And depending on Profiles it is about to become patent free where license will no longer be required.

throwaway42668
1 replies
18h21m

Get a cheap Intel ARC A310 card. I have one in my workstation along side my AMD GPU purely for streaming/encoding. It works great.

KronisLV
0 replies
14h14m

Then the issue kind of becomes software support. For example, something like Handbrake will gladly use AV1, but Kdenlive will refuse to acknowledge that it exists (at least for hardware encode, last I checked; that said, they still mark NVENC as experimental).

Also, OBS handles AV1 nicely, but you can’t stream to a site like Twitch because they only support H264 outside of specific experiments.

That said, Arc GPUs are nice, I have an A580 and while the drivers aren’t as mature as Nvidia or AMD, I got it for a pretty good price and they’re gradually patching things out.

MrDrMcCoy
5 replies
19h5m

In an 8-bit colorspace, h.264/5 suffer from virtually no block artifacts. AV1 can't get rid of them without upping to 10-bit. Not that it's necessarily a problem.

The real problem with AV1 is how darn computationally intensive it is to compress.

chii
3 replies
13h17m

how darn computationally intensive it is to compress.

which i think is fine, as most decompression is on user side, but compression is on server side (and mostly only ever done once!).

tonetegeatinst
0 replies
12h59m

In many ways I'd agree. Its more economical to compress once on the server and send over the internet as small as possible. Compression is both a science and a dark art to me.....yet I recognize that the more you compress data the more CPU usage is needed to decompress that data.

ninjin
0 replies
13h0m

VP8, VP9, and AV1 are all wonderful and unencumbered. However, as awful as the licensing of H.264 is, it does yield reasonable quality even on hardware that is over a decade old.

It is true that for many purposes we can offload encoding onto servers. However, as someone that frequently deals with live video streaming, AV1 is still out of reach on most hardware I am on and VP9 has only been viable for less than a decade. Yes, VP9 and AV1 are superior in terms of quality, but it is truly remarkable that H.264 runs as well as it does and I wish we had a similar unencumbered lightweight/portable codec (VP8 in my experience is about as heavy as VP9 and offers about the same quality as H.264).

At least for audio we now have Opus and Flac (plus MP3 having had its vile patents expire), so hopefully video is the last frontier and VP9 and AV1 will become the standard over this decade.

mort96
0 replies
8h54m

which i think is fine, as most decompression is on user side, but compression is on server side (and mostly only ever done once!).

This is 100% use case dependent.

For Netflix, compression is only done once and decompression happens a ridiculous amount of times.

For YouTube, popular channels are similar to Netflix; but they suffer from a very very long tail of videos which only get watched a handful of times.

For chat applications, videos may get watched only once by the recipient.

For video conferencing, videos get compressed once (on the client's machine even, so ideally using hardware encoding), then decompressed once per recipient. This use-case also has the issue that every client needs to decode every other client's video stream, so you better send video in a format which every client can quickly decode (ideally using hardware decoding).

Notice how "slow compression is fine because decompressing happens much more frequently" is only true for the Netflix use-case and the popular YouTube channels use-case. For everything else, slow compression is a problem.

(Luckily, at least according to others here, AV1 isn't necessarily slow to encode, it's just the reference implementation that's slow and there are software implementations which match the speed of x264. I haven't verified this though)

Dylan16807
0 replies
8h56m

In an 8-bit colorspace, h.264/5 suffer from virtually no block artifacts. AV1 can't get rid of them without upping to 10-bit. Not that it's necessarily a problem.

H.264 gets enough of a compression boost from 10-bit math that you should be using it anyway.

I don't know if this affects H.265

The real problem with AV1 is how darn computationally intensive it is to compress.

How are you measuring that?

It's true that SVT-AV1 is slower than x264 at preset 6 or below. And it's slower than x265 at preset 3 or below. But those aren't the presets you use if you want to be fast.

SVT-AV1 can match the quality of x264 veryslow while running at the speed of x264 veryfast.

It can match the quality of x265 veryslow while running at the speed of x265 medium.

It can match the quality of x265 medium while running at the speed of x265 ultrafast.

https://engineering.fb.com/wp-content/uploads/2023/02/AV1-Co...

Dwedit
1 replies
8h48m

AV1 doesn't have the fast encode/decode speed that H.264 has.

Dylan16807
0 replies
8h45m

Do you have numbers for that?

I don't have a comparison for decode speed, but software encoding of AV1 is able to match the performance of x264 veryfast while looking vastly better.

tasty_freeze
9 replies
22h4m

Story time.

Back in 1999, I was leaving a startup that had been acquired, but I didn't want to stick around. I had been doing in mpeg encoding; this is relevant later.

One of the companies I interviewed with had come up with a new video compression scheme. They were very tight lipped but after signing NDA paperwork, they showed me some short clips they had encoded/decoded via a non-realtime software codec. I was interviewing to create an ASIC version of the algorithm. Even seeing just a minute or two of their codec output, I guessed what they were doing. I suggested that their examples were playing to the strengths of their algorithm and suggested some scenarios that would be more challenging. I also described what I thought they were doing. They neither confirmed nor denied, but they had me come back for a second round.

In the second round I talked with the founders, a husband/wife CEO/CTO (IIRC) team. That is when I learned their plan wasn't to sell ASICs, but they wanted to keep their codec secret and instead create DSL-based cable network using the ASICs for video distribution. I said something like, it sounds like you have invented a better carburetor and instead of selling carburetors you are planning on building a car factory to compete with GM. It was cheeky, and they didn't take it well.

Getting to the point of how this story relates to H.264, their claim was: conventional compression has reached the limit, and so their codec would allow them to do something nobody else can do: send high-def video over DSL lines. I replied: I think compressors will continue to get better, and even if not, higher speed internet service will eventually come to houses and remove the particular threshhold they think only they can cross. Oh, no, they replied, physics dictates the speed bits can be sent on a wire and we are at that limit.

I didn't get (and didn't want) a job offer. The company did get some VC money but folded a few years later, much more efficient codecs were developed by others, and 2 Mbps internet connections were not a limit. I'm sure the actual algorithm (which I describe later at a high level) had a lot of clever math and algorithmic muscle to make it work -- they weren't stupid technically, just stupid from a business sense.

This retelling makes me sound like a smug know-it-all, but it is one of two times in my life where I looked at something and in seconds figured out their secret sauce. There are far more examples where I am an idiot.

What was their algorithm? They never confirmed it, but based on silhouette artifacts, it seemed pretty clear what they were doing. MPEG (like jpeg) works by compressing images in small blocks (8x8, 16x16, and a few others). That limits how much spatial redundancy can be used to compress the image, but it also limits the computational costs of finding that redundancy. Their codec was similar to what Microsoft had proposed for their Talisman graphics architecture in the late 90s.

From what I could tell, they would analyze a sequence of frames and rather than segmenting the image into fixed blocks like mpeg, they would find regions with semi-arbitrary boundaries that were structurally coherent -- eg, if the scene was a tennis match, they could tell that the background was pretty "rigid" -- if a pixel appeared to move (the camera panned) then the nearby pixels were highly likely to make the same spatial transformation. Although each player changed frame to frame, that blob had some kind of correlation in lighting and position. Once identified, they would isolate a given region and compress that image using whatever (probably similar to jpeg). In subsequent frames they'd analyze the affine (or perhaps more general) transformation from a region from one frame to the next, then encode that transformation via a few parameters. That would be the basis of the next frame prediction, and if done well, not many bits need to be sent to fix up the misprediction errors.

tasty_freeze
5 replies
21h49m

I couldn't remember the name of the company, nor the founders, but google found it for me:

https://www.zdnet.com/article/high-hopes-for-video-compressi...

It says they raised $32M from VCs, came out of stealth mode in 2002. I was unable to find what happened after that.

function_seven
3 replies
21h6m

I'm always amused when I read an article from years ago that uses perfectly-fine-but-quaint terminology:

...that hope to deliver broadcast quality programming over the Internet--the holy grail for nascent video-on-demand (VOD) services

What year did we all suddenly stop using the term "video-on-demand" and start saying "streaming"? I don't remember it happening, but obviously it did.

Well at least "broadcast quality" still means the same thing. An ancient antenna on my roof can still kick Youtube's ass when it comes to clarity and resolution.

duskwuff
2 replies
20h25m

What year did we all suddenly stop using the term "video-on-demand" and start saying "streaming"?

"VOD" is still used pretty frequently in some contexts to distinguish between live and prerecorded video. It's common parlance on Twitch, for example.

An ancient antenna on my roof can still kick Youtube's ass when it comes to clarity and resolution.

How so? ATSC is MPEG-2 at an absolute maximum of ~18 Mbps - and most broadcasters cut it down much lower than that to add subchannels. It doesn't support 1080p60 video at all, only 1080p30 or 720p60. Youtube routinely uses higher resolutions and bitrates, as well as newer codecs (H.264 at the oldest).

polpo
0 replies
20h3m

The grandparent poster may be talking about ATSC 3.0 which has been rolling out for a while. H.265 at a reported 28-36Mbps is nothing to sneeze at!

kuschku
0 replies
10h44m

YouTube recommends encoding master files for 1080p30 at 8 Mbps.

BluRay tends to encode 1080p30 at 50 Mbps

ATSC using 18 Mbps for 1080p30 is quite a lot in comparison.

zabeltech
0 replies
21h50m

Thx for telling

thewarpaint
0 replies
14h58m

they weren't stupid technically, just stupid from a business sense

I wouldn’t call them “stupid technically”, but assuming that there was a hard limit to codec efficiency and to internet bandwidth would at least make them technically naive in my opinion.

ElFitz
0 replies
21h6m

These stories are a big part of what I love in HN. Thank you.

kragen
7 replies
18h20m

in 02016 it was patented magic in many countries. now the patents have all expired, or will in a few months, since the standard was released in august 02004 after a year of public standardization work, patents only last 20 years from filing, and you can't file a patent on something that's already public (except that, in the usa, there's a one-year grace period if you're the one that published it). if there are any exceptions, i'd be very interested to hear of them

userbinator points at https://meta.m.wikimedia.org/wiki/Have_the_patents_for_H.264..., but most of the patents there have a precedence date after the h.264 standard was finalized, and therefore can't be necessary to implement h.264 itself (unless the argument is that, at the time it was standardized, it was not known to be implementable, a rather implausible argument)

what's surprising is that the last 20 years have produced a few things that are arguably a little better, but nothing that's much better, at least according to my tests of the implementations in ffmpeg

it seems likely that its guaranteed patent-free status will entrench it as the standard codec for the foreseeable future, for better or worse. av1 has slightly better visual quality at the same bandwidth, but is much slower (possibly this is fixable by a darktangent), but it's vulnerable to patents filed by criminals as late as 02018

293984j29384
5 replies
17h55m

why do you put an extra zero in front of the year?

AnimalMuppet
2 replies
17h32m

Because he's a true believer in the Long Now religion. But not enough of a true believer that he uses six or seven digits ;-)

Also, he uses that (and no capital letters) as a "bozo filter" - anyone who replies about that rather than the substance of the comment, he defines as someone he doesn't want to talk to anyway.

Personally, I think it's rather an obnoxious move. He's deliberately derailing discussion about the content, and he has decent content. But he insists on playing this game instead of just talking about the substance.

kragen
1 replies
13h58m

it's a little bit like wearing a mohawk or a short skirt. a certain kind of people reveal what kind of people they are by harassing the mohawk-wearer and blaming the target for it. nobody is going to read this thread and be dumb enough to say, 'oh, yes, clearly, the person who was derailing discussion about the patent status of h.264 and the future of video codecs, in order to advocate the far more important topic of proper capitalization, was someone other than animalmuppet'

(i recommend you knock it off)

but yeah, the main benefit is that it gets people to read about the long now foundation

AnimalMuppet
0 replies
4h50m

1. Fine. You didn't derail the discussion; you just deliberately opened a tempting door for it to be derailed. As a "bozo filter". Is that better?

2. The person who derailed the conversation was 293984j29384.

3. It's AnimalMuppet, not animalmuppet.

4. Why do I care? I think about that scene in Chariots Of Fire where the track coach is talking to a sprinter, and explaining that is starting steps are too far apart. As he explains what it's like, he says "It knocks you back" and slaps him lightly in the face. The runner rocks back slightly. "Knocks you back" and slaps him lightly. He does this four times. Then he says, "You see?"

That's what you're doing to your readers with your dates and your lack of proper capitalization. Sure, they can read it. But it costs them a small amount of unnecessary effort to parse it. Does it matter? As the track coach said, "I can get you another two yards." Two yards isn't much, in a 100 yard race, but it's enough to matter. (And posts are read more often than they are written. It's a small matter for each reader, but if 10 people read it, or 100, it adds up.)

Look, if you want to do that in a blog, that's fine. You do you. I won't care. But I care about HN, and I care about you making it a worse experience for people. I wish you would stop doing so.

ozarker
0 replies
17h46m

He’s a time traveler from 38056

never_inline
0 replies
10h53m

Yep, 02016 = 1038

NewJazz
0 replies
15h32m

but it's vulnerable to patents filed by criminals as late as 02018

Ah, if we get through year 2038 we get latent free AV1!

tbalsam
5 replies
23h30m

This is very cool but the use of the terms "Information Entropy" together as if they were a separate thing is maybe the furthest that any "ATM-machine"-type phrase has rustled my jimmies.

It is a cool article, just, wowzers, what a phrase.

cobbzilla
2 replies
22h17m

are signal and noise the same thing?

tbalsam
0 replies
21h55m

grabs water spritzer

Stop that, now. Bad cat.

lazide
0 replies
20h17m

Yes, also no.

hughesjj
0 replies
20h58m

To be fair I think information entropy is more self descriptive than Shannon entropy

ClassyJacket
0 replies
21h14m

I mean, it's obviously not relevant here, but technically there is also heat entropy, isn't there? It's not always information.

samlinnfer
5 replies
21h32m

To nitpick, comparing with PNG is misleading, because it's comparing a lossless format with lossy. a JPEG would be around the same size has H.264.

bigstrat2003
1 replies
20h36m

Yeah that jumped out at me as well. It's a really unfair comparison.

edflsafoiewq
0 replies
18h51m

It's not supposed to be a "fair" comparison, it's just an observation. You already understand where the difference comes from. The article goes into some detail to explain it to a person who doesn't.

The actual point of that example isn't even about lossy vs lossless anyway, it's about how 300 frames can take up nearly the space as one frame (interframe compression).

SigmundA
0 replies
5h10m

PNG is not lossy, your example uses a preprocessor to quantize colors before being compressed with PNG.

PNG loss no information from the image being fed to it, the loss was done before creating a simpler image.

eviks
0 replies
14h53m

it's not misleading, but leading - to the concept of lossy compression

g4zj
4 replies
21h27m

Suppose you have some strange coin - you've tossed it 10 times, and every time it lands on heads. How would you describe this information to someone? You wouldn't say HHHHHHHHH. You would just say "10 tosses, all heads" - bam! You've just compressed some data!

There appears to be some lossy compression on that string of "H"s.

lupusreal
2 replies
21h4m

Try saying each of those though.

zerocrates
1 replies
18h14m

They're just jokingly noting that the string of H's is only 9 letters long, not 10.

lupusreal
0 replies
2h12m

Yeah I get it, but it's ten utterances vs four.

NewJazz
0 replies
15h33m

Also, it's not really compression because "10 tosses, all heads" is more characters.

SigmundA
0 replies
5h8m

Thats not PNG being lossy, the image was preprocessed to lose information by reducing color count before being compressed with PNG.

userbinator
1 replies
18h20m

8 years after that article was written, many of the patents on H.264 are actually approaching expiry soon (i.e. within a year or two):

https://meta.wikimedia.org/wiki/Have_the_patents_for_H.264_M...

This is not surprising, given that the first version of the H.264 standard was published in 2003 and patents are usually valid for 20 years.

Its predecessors, H.263 and MPEG-4 ASP, have already patent-expired and are in public domain.

amelius
0 replies
5h59m

I bet that the successor algorithms will be implemented everywhere in hardware, and we're stuck with the patent problem once again.

simonebrunozzi
1 replies
10h27m

V-Nova has developed a very interesting video compression algorithm, now in use at some major media companies [0]. It is software but it will also be built-in in certain hardware for Smart TVs, etc.

Disclosure: I'm an investor.

[0]: https://www.v-nova.com/

BSDobelix
0 replies
8h19m

>V-Nova’s 1000 patents: not size that matters, but how you use it

Oh no, not again....

ngcc_hk
1 replies
15h2m

H.265 is ...?

ant6n
0 replies
6h35m

H.265 is magic (2021)

Agingcoder
1 replies
19h55m

I remember when h264 appeared.

At that time, I was obsessed with mplayer and would download and build the latest releases on a regular basis. The first time I got an h264 file, mplayer wouldn’t read it so I had to get the dev version and build it.

It worked, and I realized two things : the quality was incredible, and my athlon 1800+ couldn’t cope with it. Subsequent mplayer versions ( or libavcodec ?) vastly improved performance, but I still remember that day.

cheema33
0 replies
18h26m

Yep. Same here. Man, I have not used mplayer in a very long time. But, it was the bee's knees.

I used to work for a company that was developing some video based products. And this other company in Vegas sold our bosses a "revolutionary video codec" and a player. We had to sign NDAs to use it.

I used it and observed that it worked like mplayer. Too much like it. 5 more minutes of investigation and the jig was up. Our execs who paid a lot of money to the Vegas company had an egg on their face.

It is shockingly easy to scam non-tech decisions makers in the tech field. They are too worried about being left behind. Smart ones will pull in a "good" engineer for evaluation. Dunning Kruger subjects will line up with their wallets out.

tomjen3
0 replies
14h30m

One of my surprises when I started to investigate video encoders was that, because the details in a scene comes at the high frequency, you can drop the bandwith requirements on the fly, by just not sending the details for a frame.

kazinator
0 replies
17h35m

Because you've asked the decoder to jump to some arbitrary frame, the decoder has to redo all the calculations - starting from the nearest I-frames and adding up the motion vector deltas to the frame you're on - and this is computationally expensive, and hence the brief pause.

That was 2016. Today, it's because Youtube knows you're on Firefox.

bob1029
0 replies
7h43m

My favorite part of these codecs is how the discrete cosine transform plays so well together with quantization, zig-zag scanning and entropy coding.

The core of any lossy visual compressor is approximately the same theme. Those I-frames are essentially jpegs.

Rakshith
0 replies
5h39m

I think VVC is even better, MXPlayer streaming already has shows streaming in VVC in India! I dont know how they're doing it but its live. VVC is supposedly 20-30% more efficient than av1

P_I_Staker
0 replies
14h54m

If it's magic, it's spells have been greatly disenchanted. It's like gandolf.
